Product Information

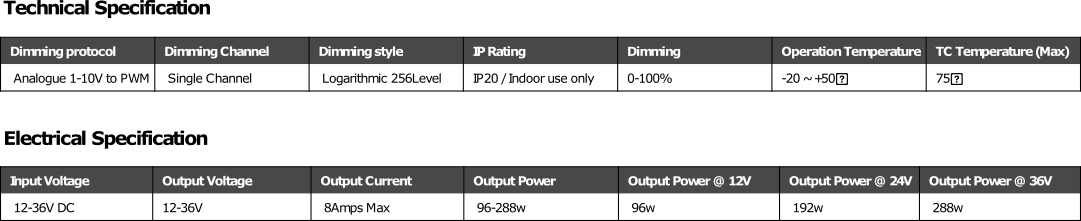

1-10V Analogue dimming module with SELV 12-36V DC constant voltage input. PWM output equal to input voltage with a maximum of 8Amps. Removable connection terminals on 1-10V dimming line connection for easy connection/fault finding. We have also included a second dimming function on this device “PUSH DIM”, by connecting a momentary or bell press switch on the dimming input, Push style dimming can be achieved. Short press on the switch will turn the device on & off, while a long press will dim the lights up or down.
